Field record

Dated, and shot to a protocol.

Every frame on this page is the founder's own, taken on a dated visit and catalogued on return. Locations, coordinates and target names are withheld until tenure is secured — the omission is deliberate, not a gap.

First target

Low sulfidation vein textures

Ribboned crack–seal lamination, drusy open-space growth and limonite boxwork after sulfide, recorded across a single traverse on 31 July 2026, with silica float from 2025 that may be sinter.

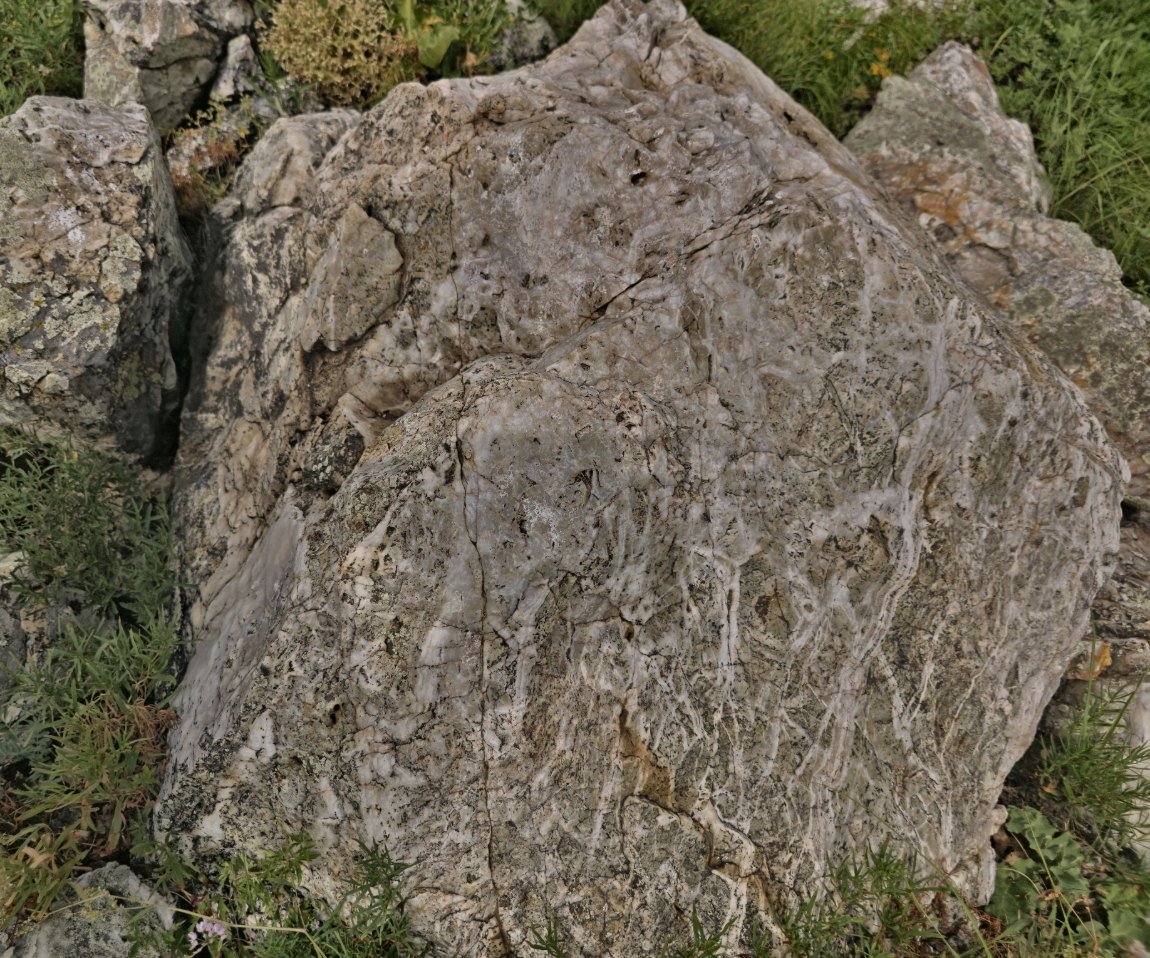

Anastomosing quartz stockwork — PLATE 01 — ANASTOMOSING QUARTZ STOCKWORK · 2026-07-31LOCATION WITHHELD

Open vug lined with drusy quartz crystals — PLATE 02 — DRUSY-LINED VUG, OPEN-SPACE GROWTH · 2026-07-31LOCATION WITHHELD

Tabular quartz vein rib standing proud of grass — PLATE 03 — QUARTZ VEIN RIB, RIBBONED FABRIC
2026-07-31 · LOCATION WITHHELD

Vuggy vein quartz slab, hammer for scale — PLATE 04 — VUGGY VEIN QUARTZ
2026-07-31 · HAMMER FOR SCALE

Limonite boxwork after sulfide in vein quartz — PLATE 05 — LIMONITE BOXWORK AFTER SULFIDE
2026-07-31 · IN VEIN QUARTZ

Vuggy silica with banded and iron-stained zones, possible sinter — PLATE 06 — VUGGY SILICA, POSSIBLE SINTER · 2025-07-13LOCATION WITHHELD

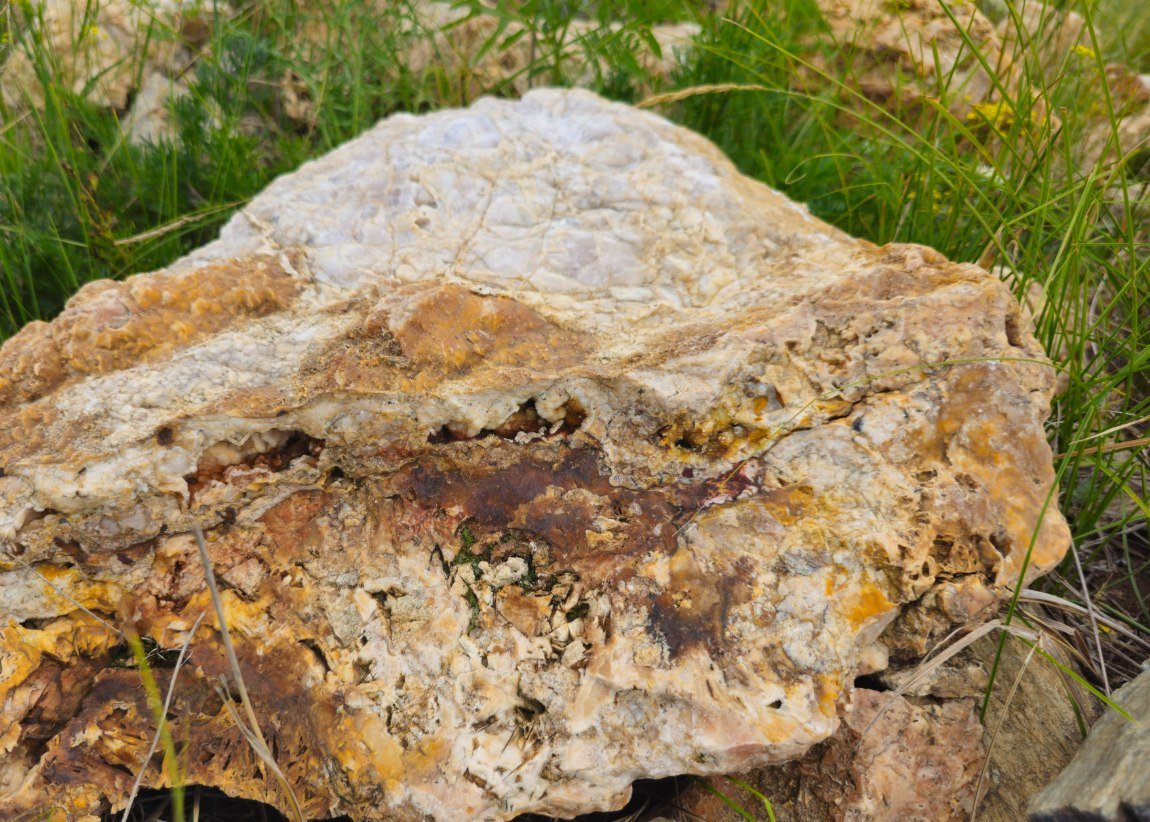

Vuggy silica with cellular cavity framework, possible sinter — PLATE 07 — CELLULAR SILICA FRAMEWORK, POSSIBLE SINTER · 2025-07-13LOCATION WITHHELD

Second target

High sulfidation characteristics

A separate area of resistant silicified outcrop carrying vuggy residual silica. Textural observation only: no assay data exist for either target, and nothing on this page is evidence of gold.

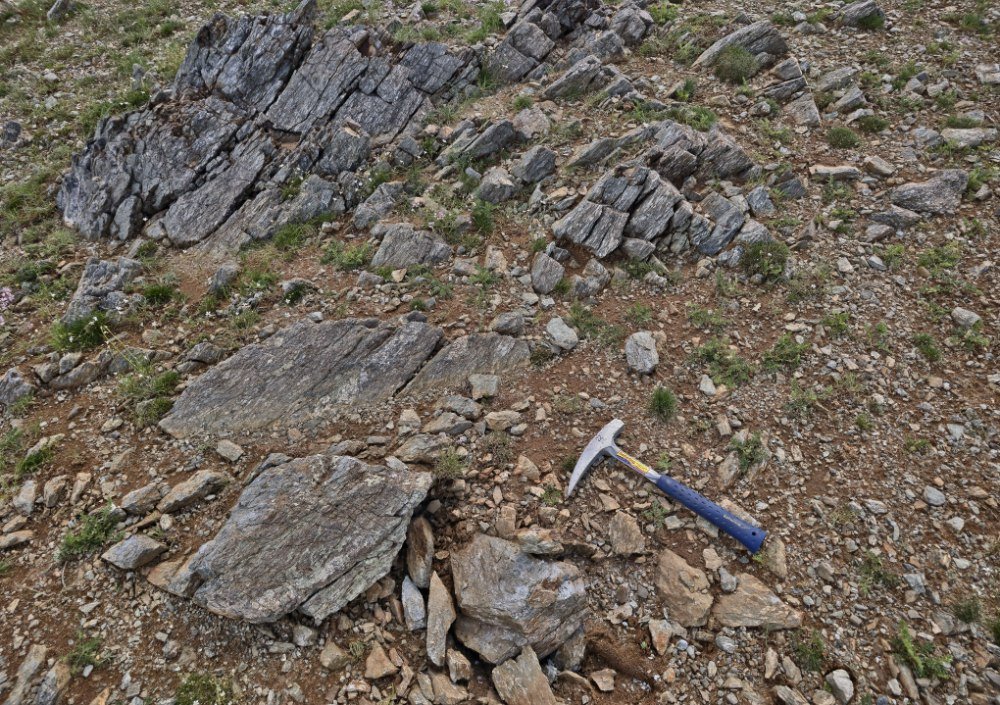

Resistant silicified ribs across a weathered slope, hammer for scale — PLATE 08 — RESISTANT SILICIFIED RIBS · DATE [CHECK]HAMMER FOR SCALE

The observation is lateral: resistant ribs hold across the slope rather than standing as an isolated block. Extent beyond the frame is untested.

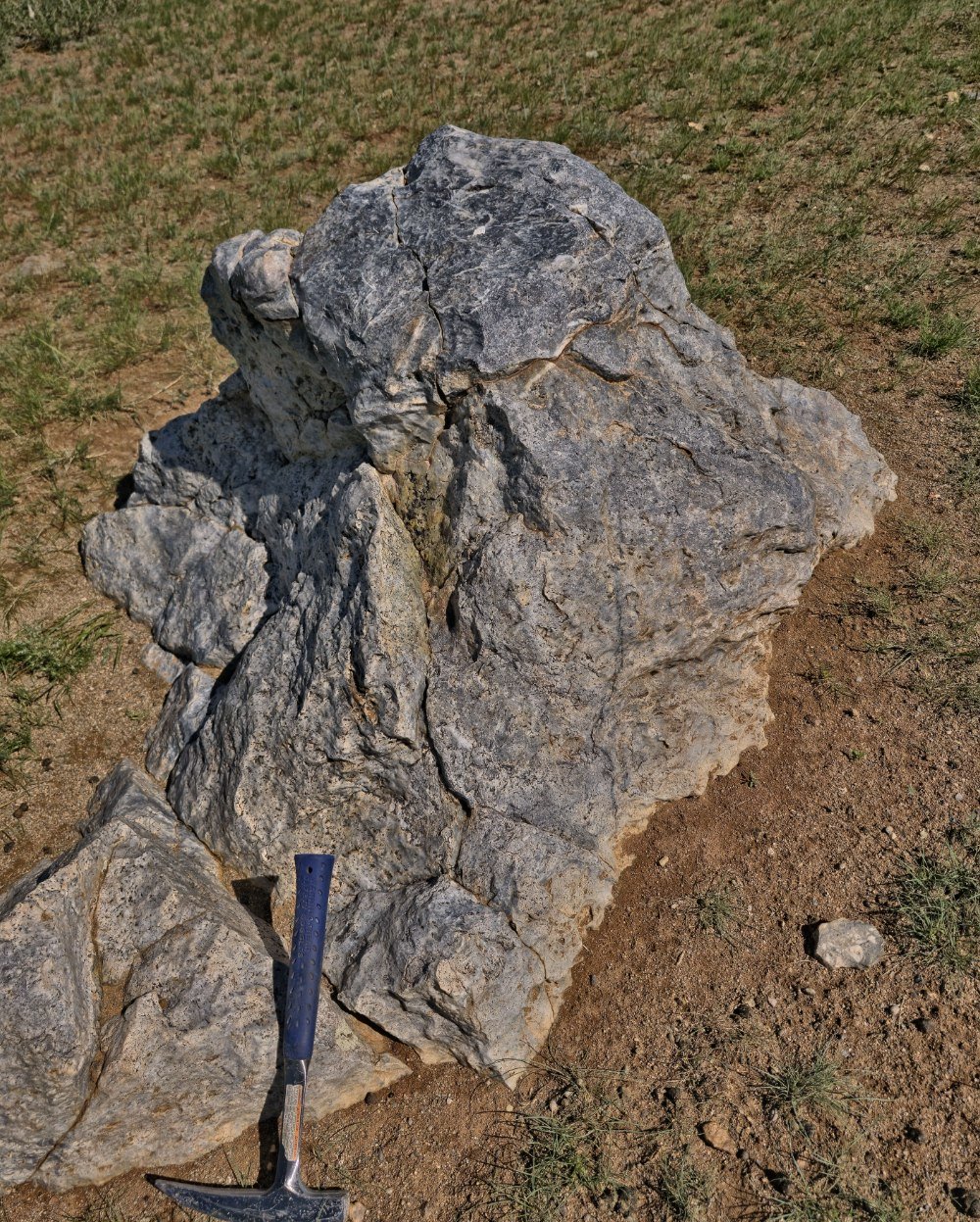

Silicified outcrop block, hammer for scale — PLATE 09 — SILICIFIED OUTCROP BLOCK · DATE [CHECK]HAMMER FOR SCALE

Vuggy residual silica texture — PLATE 10 — VUGGY RESIDUAL SILICA · DATE [CHECK]LOCATION WITHHELD

Documentation protocol

01Every frame carries a capture date. Nothing undated is published.

02Specimens are shot to a fixed protocol — consistent ground and lighting, with a scale reference in frame: hammer, chisel or 10× loupe. A graduated scale card carrying the station and sample number is being adopted from the next traverse.

03Locations are stripped from anything public. Full field notes, sample descriptions and coordinates are available to counterparties under a confidentiality agreement.
